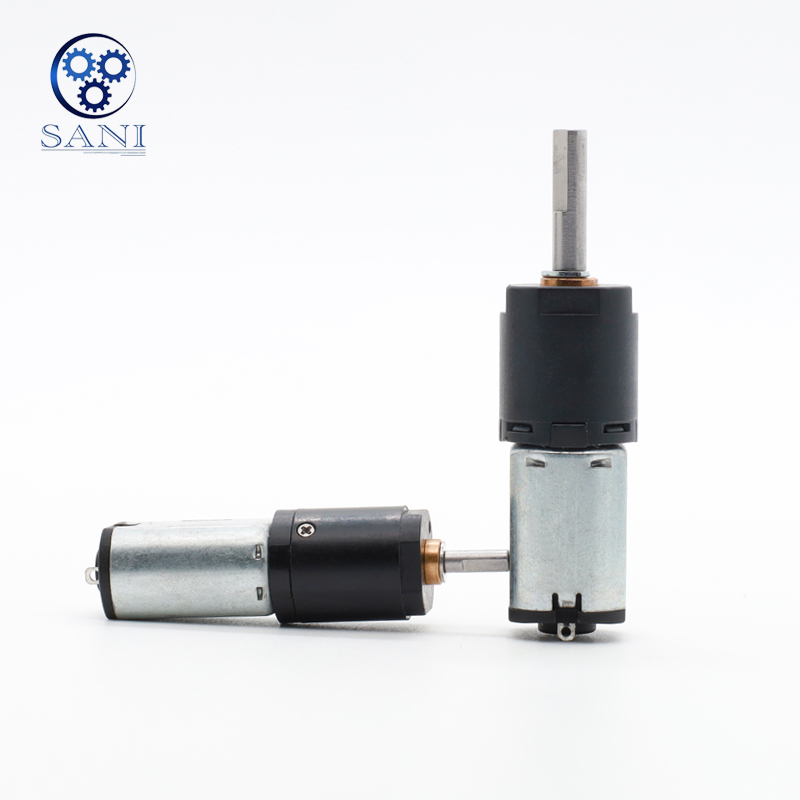

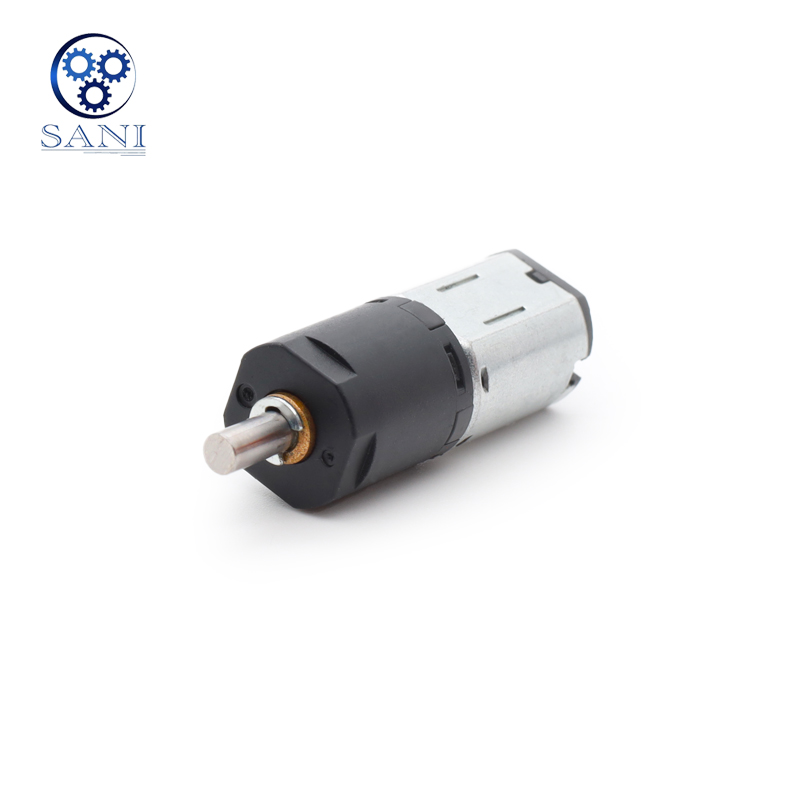

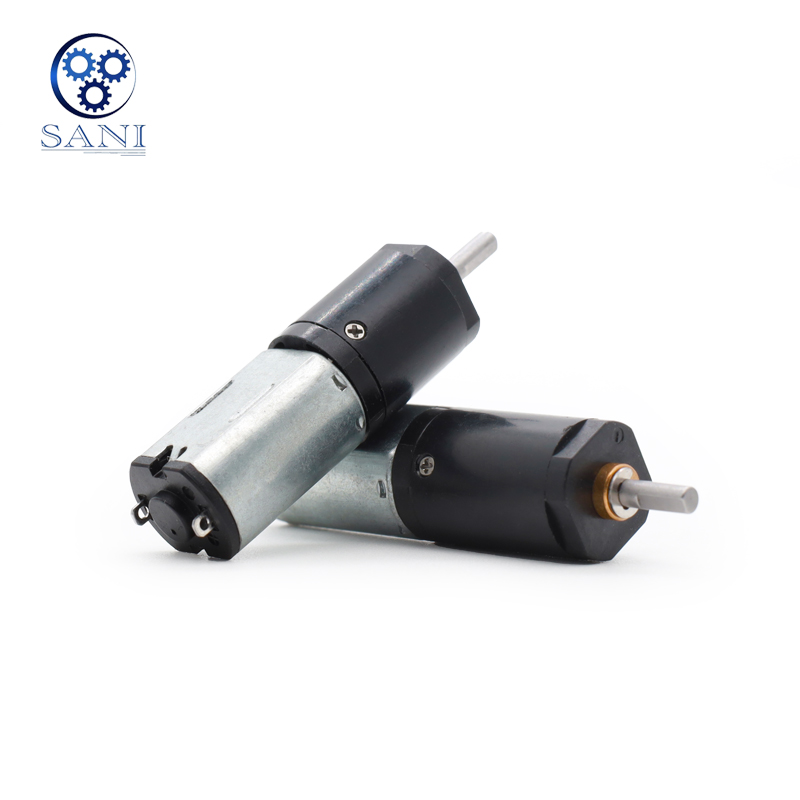

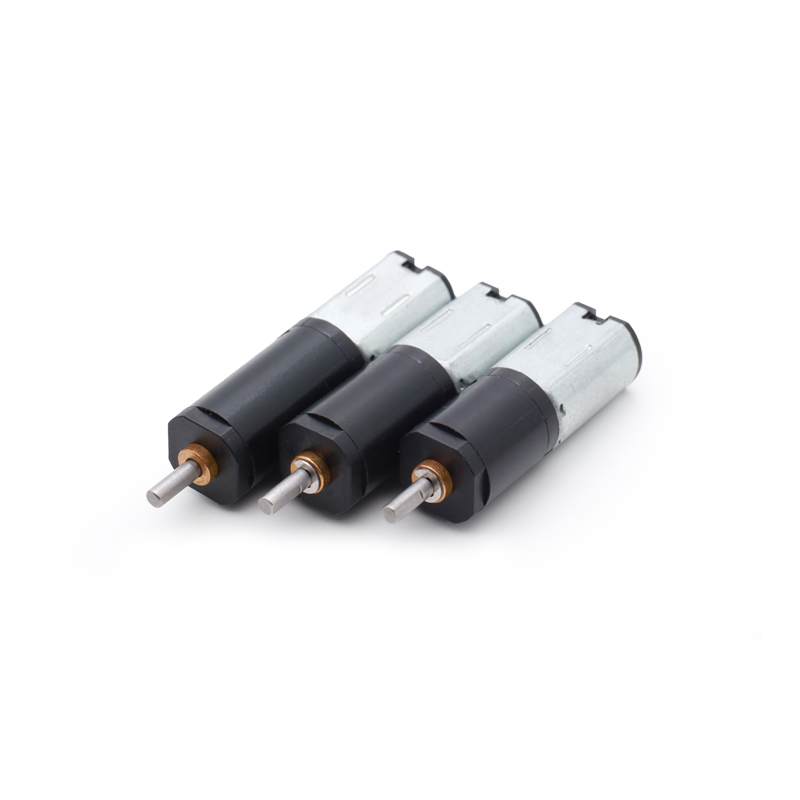

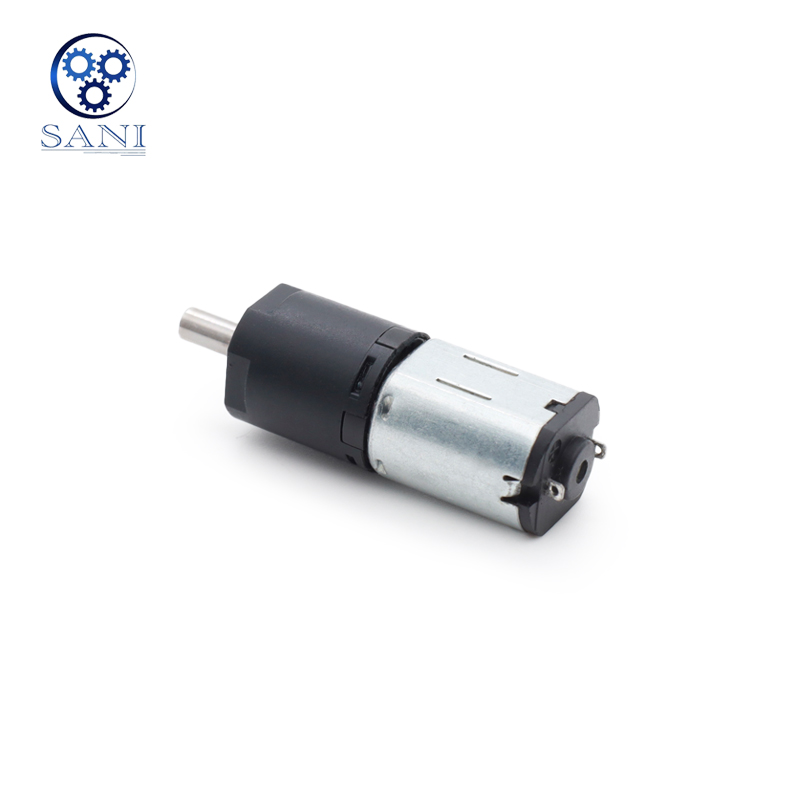

Micro planetary gear motor - 10mm precision transmission expert
Core features
Precise transmission system: a three-stage planetary gear system structure, which amplifies torque through the meshing of the sun gear with the planetary gear, with a-stage reduction ratio of (number of internal teeth / number of sun teeth) 1, and a maximum cumulative ratio of 1296:1
High-performance material: POM gear with abrasion resistance and low friction coefficient, metal output shaft version can withstand the working condition of -40℃~20℃, and has a continuous operation life of more than 1000 hours.
Technical parameters
Electrical performance: under 3V DC power supply, no-load current 6-20mA, peak load current 100mA, suitable micro stepping motor and DC motor.
Mechanical indicators: axial clearance ≤ 0.2mm, radial load ≤ 6kgf, back clearance no load ≤ 1.5, meeting the stringent requirements of precision instruments for transmission accuracy.
Application scenarios
Smart devices: automatic curtain motor, smart toilet seat lifting mechanism;
Consumer electronics: mobile phone gimbal stability system, camera lens focusing module;
Ind field: medical equipment micro-pump drive, automated inspection instrument transmission.
Customized service
Support for non-standard customization of reduction ratio, shaft diameter, and housing material, providing derivative size options such as 16/22/28mm with the fastest sample delivery within 10 working days.
